Description

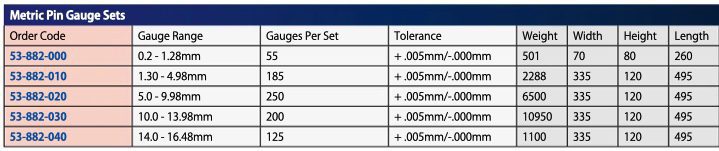

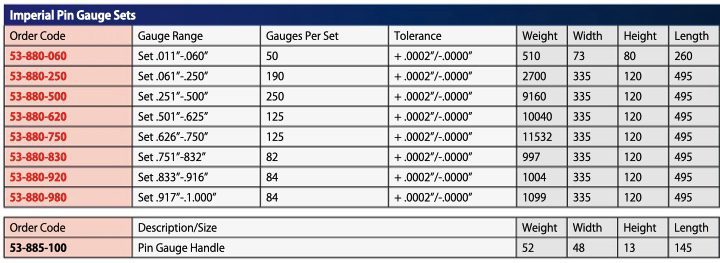

Please use the Metric and Imperial charts to select the order code you require.
Pinn Gauge Sets Class ZZ Tolerance.
Price range: £35.50 through £685.00
High precision pin gauge set are suitable for a range of uses:
Checking hole size, slot widths, distance between holes, Go and No Go size, setting micrometers and other gauges
Fully hardened: HRC 60-62
Pin length: 2”
Surface finish: 10 micro inches or better Roundness: within 0.0001”
Sizes and tolerance direction marked on gauges above 0.060” and 1.28mm
All sets contain a certificate of accuracy
Additional information
| Size | Imperial order code 53-880-060, Imperial order code 53-880-250, Imperial order code 53-880-500, Imperial order code 53-880-620, Imperial order code 53-880-750, Imperial order code 53-880-830, Metric order code 53-882-000, Metric order code 53-882-010, Metric order code 53-882-020, Metric order code 53-882-030, Metric order code 53-882-040, pin gauge handle 53-885-100 |
|---|
